Brainboxes ED-008 Ethernet to 8 Digital IO Lines
SKU
ED-008
- 8 Digital Inputs/Outputs
- Control any input or output from TTL to high voltage high current industrial devices
- Factory floor process control and automation
- User friendly software interface, Legacy compatible
- -10°C to +60°C / -10oC to +60oC / +14oF to +140oF temperature range
- Wall mountable
- Software APIs for Visual Basic, C# and more
Category: Digital & Analog I/O Modules
| SKU | ED-008 |
|---|---|
| EAN | 8373240098116 |
| Manufacturer | Brainboxes |
| Availability | Out of Stock |
| PDF URLs |
View PDF |

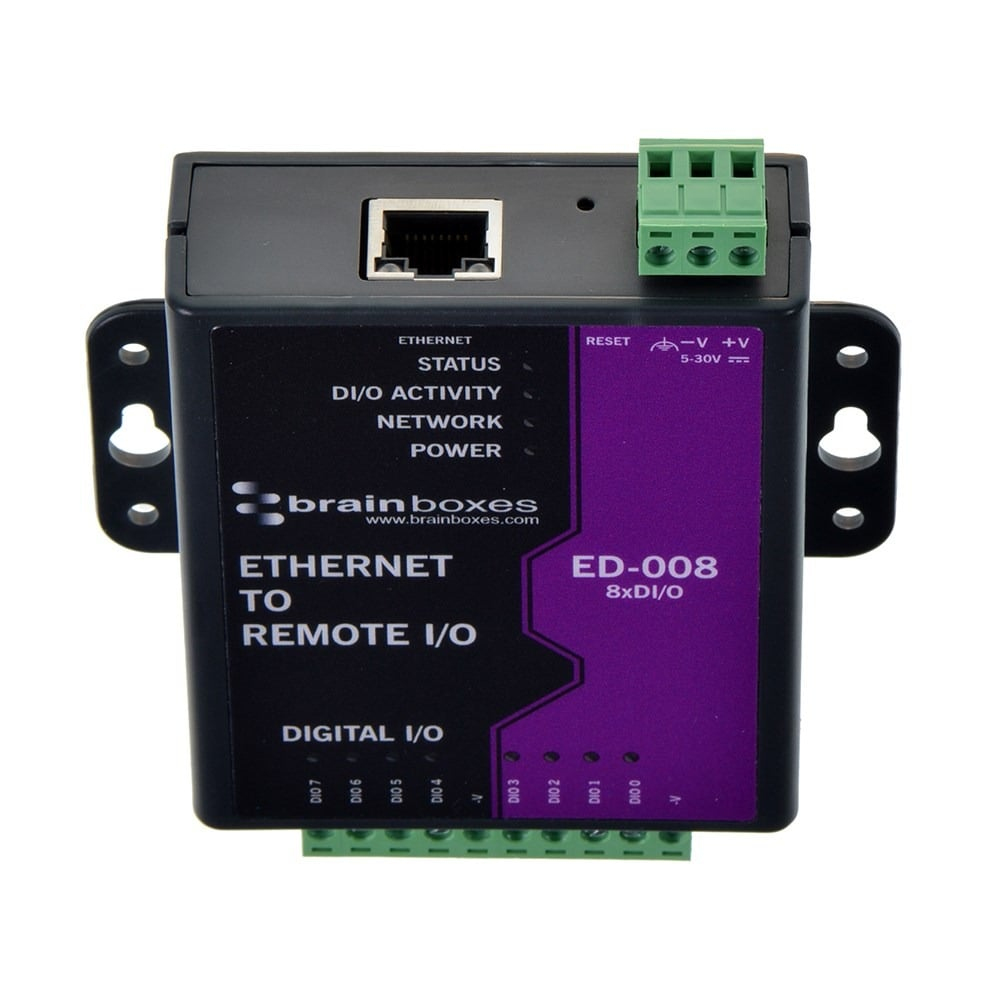

8 Digital Inputs/Outputs
Offers robust and intelligent ‘control side’ devices that provide the interface to systems on the 24V factory floor environment

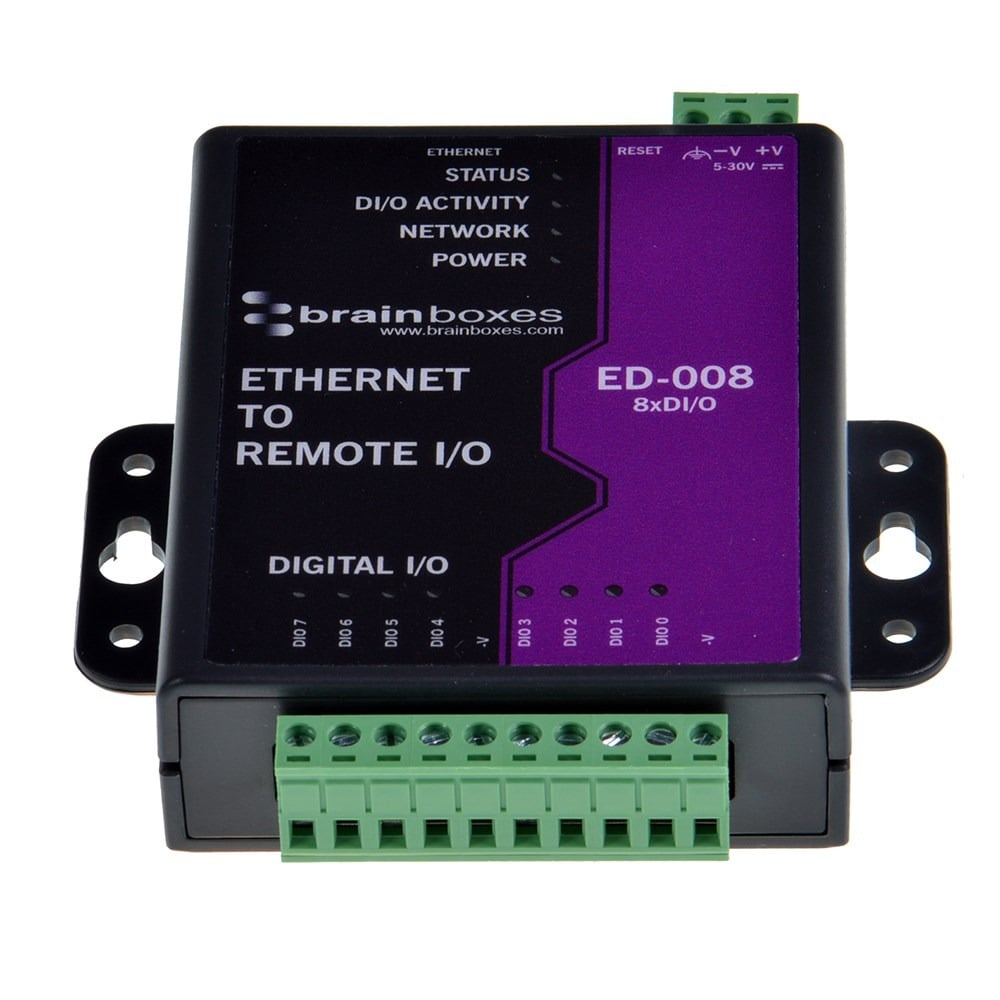

Easy set up with LED status lights
Digital I/O lines that correspond to simple to read webpage

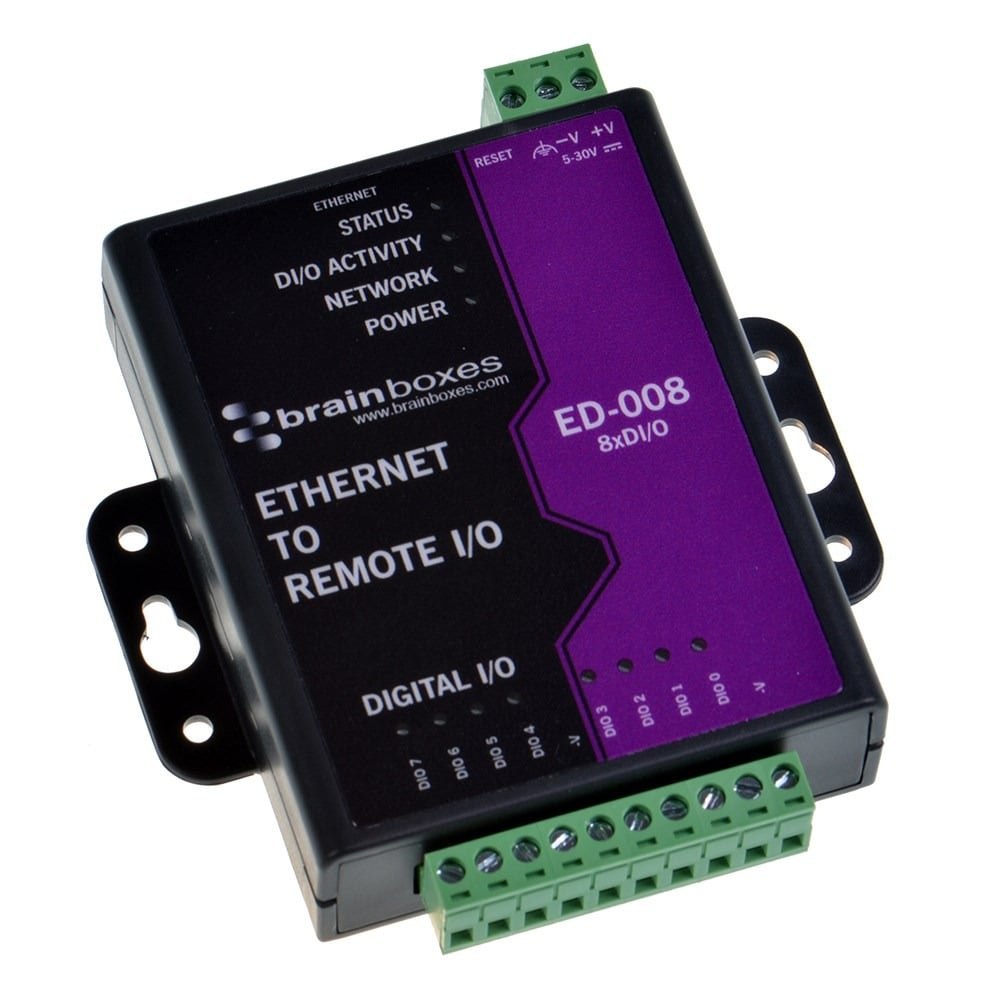

Integral wall mount option
Wall mount holes compatible with MK-048 DIN mount clips
Ethernet to DIO device: 8 digital input/output channels. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications.
Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
| Features | |
|---|---|
| Module type | Digital |
| Supported network protocols | ICMP, IP, TCP, DHCP, HTTP |
| Signal direction | Input/output |
| Serial interface type | RS-232 |
| Isolation | 1.5 kV |
| Ethernet LAN (RJ-45) ports | 1 |
| Product colour | Black, Violet |
| Certification | WEEE, RoHS, AEO (C-TPAT), CE |
| Digital input channels quantity | 8 channels |
| Digital output channels quantity | 8 channels |
| I/O protocols | Modbus TCP or DCON ASCII (over TCP or Virtual COM port) |
| Maximum output voltage | 30 V |
| Maximum output current per channel | 0.85 A |
| Windows operating systems supported | Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64 |
| Mobile operating systems supported | Android, iOS |
| LED indicators | Activity, Link, Speed |
| International Protection (IP) code | IP30 |
| Power | |
| Power consumption | 100 mA |
| Maximum input voltage | 35 V |
| DC input voltage | 5 - 30 V |
| Power supply type | PW-600/PW-650 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Technical details | |
| Module type | Digital |
| Signal direction | Input/output |
| Isolation | 1.5 kV |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA |
| Ports & interfaces | |
| Serial interface type | RS-232 |
| Ethernet LAN (RJ-45) ports | 1 |
| Protocols | |
|---|---|
| Supported network protocols | ICMP, IP, TCP, DHCP, HTTP |
| Colour | |
| Product colour | Black, Violet |
| Certificates | |
| Certification | WEEE, RoHS, AEO (C-TPAT), CE |
| Weight & dimensions | |
| Weight | 223 g |
| Width | 135 mm |
| Depth | 160 mm |
| Height | 49 mm |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 223 g |
| Logistics data | |
| Country of origin | United Kingdom |
| Export Control Classification Number (ECCN) | 5A991.b |
