ARCTIC P14 PWM PST RGB 0dB - Semi-Passive 140 mm Fan with Digital RGB and without RGB-Controller - Value Pack
SKU
ACFAN00255A
Login for pricing
In Stock:
0 available
140 mm, 0 - 1900 RPM, RGB, PWM, FDB, 68.9 CFM, 117.06 m3/h, 12 V DC, 4-pin + 4-pin, 210 g, Triple Pack
Category: Computer Cooling Systems
| SKU | ACFAN00255A |
|---|---|
| EAN | 4895213703482 |
| Manufacturer | ARCTIC |
| Availability | Out of Stock |
| Product Manuals (HTML) |
View Manual |
| PDF URLs |
View PDF |

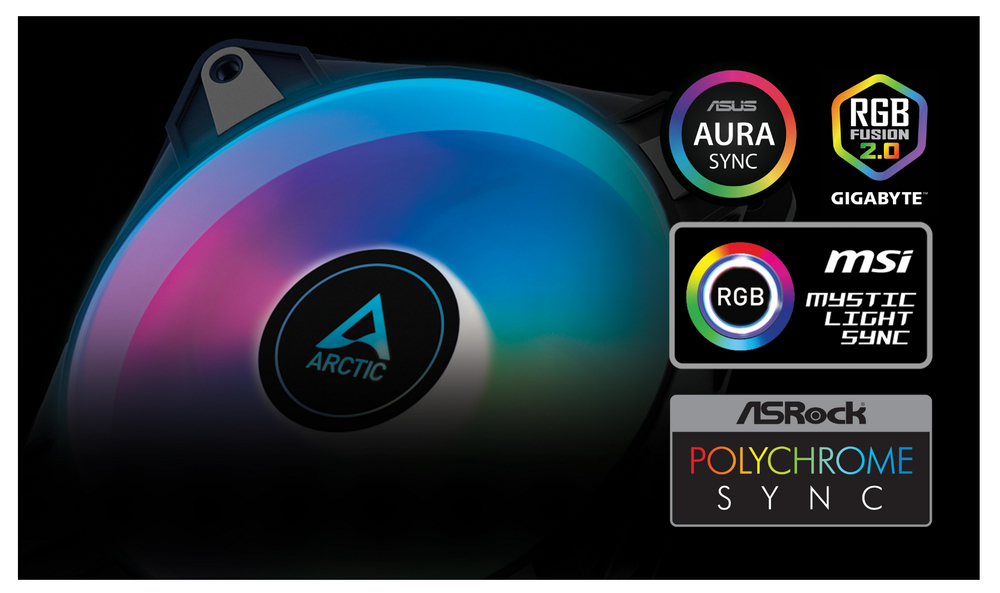

RGB FOR FULL COLOURS
The P14 PWM PST RGB 0dB has 12 analogue RGB LEDs in the fan barrel. These can be controlled uniformly and are compatible with the common RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the RGB mainboard connection or via an external controller and synchronised with the illumination of other hardware.

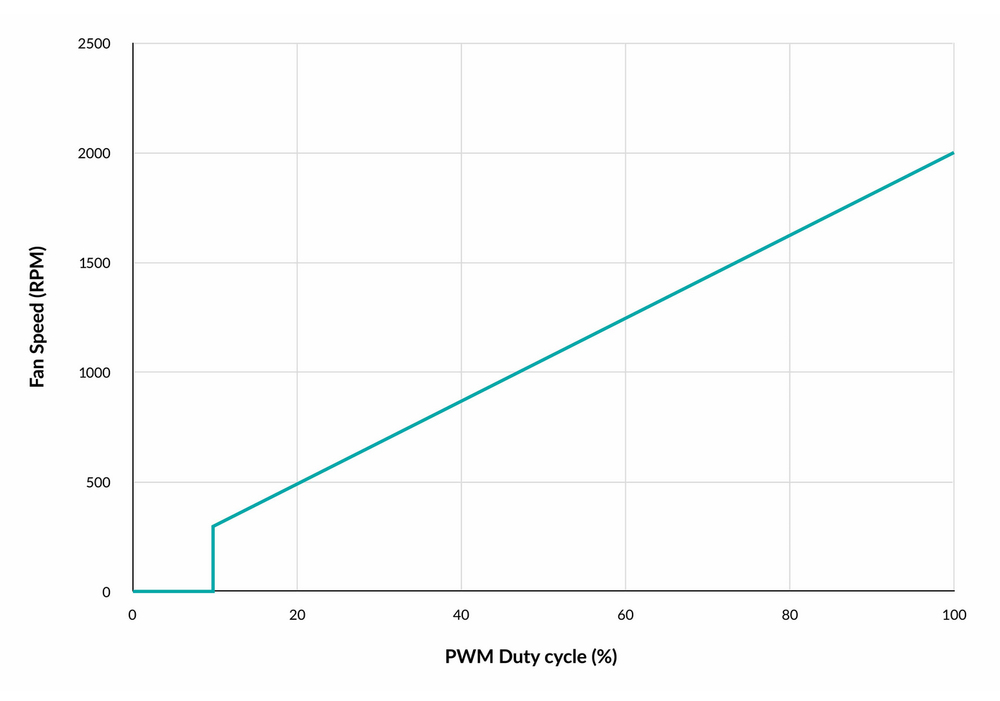

0 dB MODE - ZERO RPM
The speed of the P14 PWM PST RGB 0dB can be throttled to a standstill via PWM. This allows for silent operation in IDLE and at the same time guarantees maximum performance when needed.

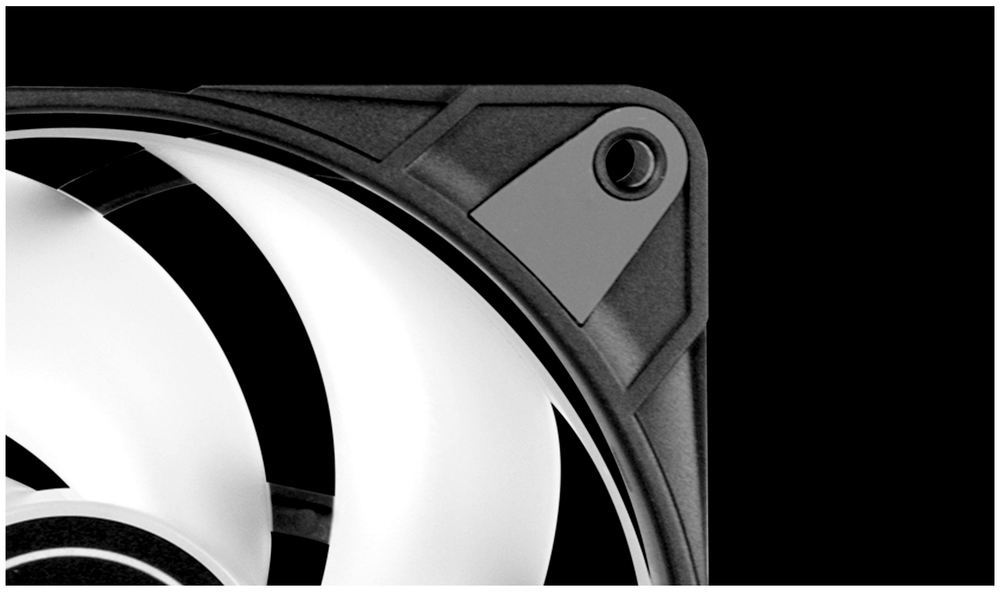

MAXIMUM SMOOTHNESS, MINIMUM VIBRATION
The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. In addition, the P14 PWM PST RGB 0dB has rubberised contact surfaces and thus reduces audible vibrations to a minimum.

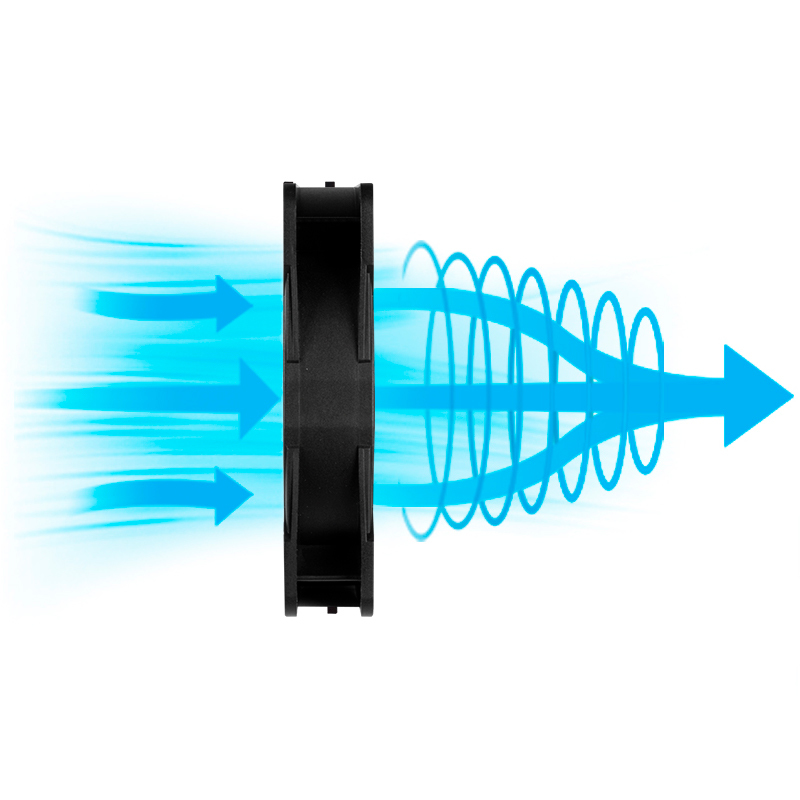

OPTIMISED FOR HIGH STATIC PRESSURE
The P14 PWM PST RGB 0dB operates with a focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters.

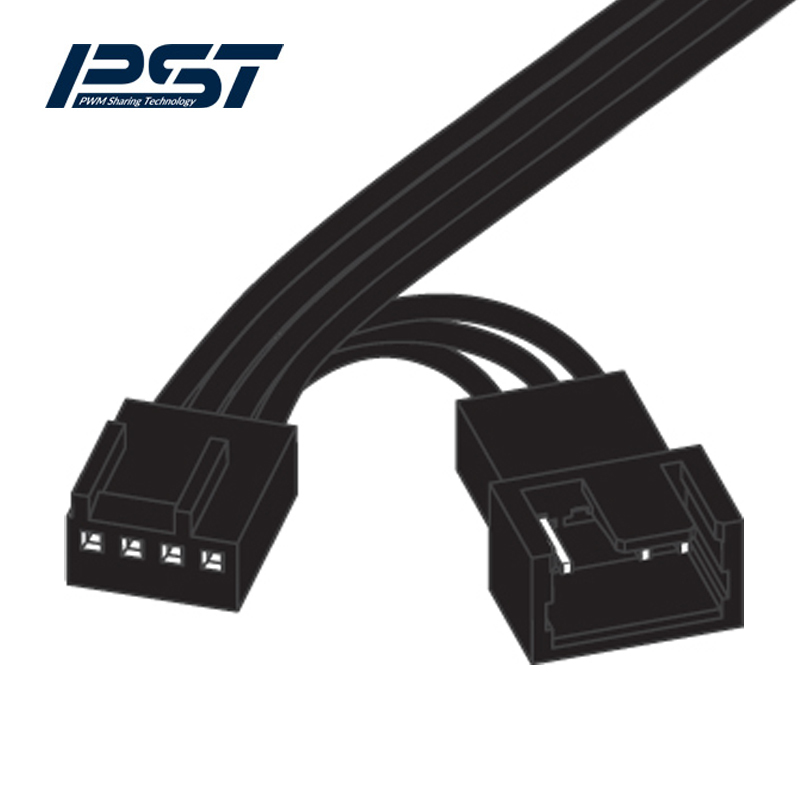

0 TO 1900 RPM CONTROLLED VIA PWM PST
With a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P14 PWM PST RGB 0dB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.
HIGH QUALITY PLAIN BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. In this way, less heat develops, less bearing noise is generated and the service life of the fan is extended.
ARCTIC’s versatile assortment of PC fans are both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our case fans are equipped with state-of-the-art engine technology, innovative fan blades and high quality bearings, making them particularly durable and efficient.
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin + 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (max) | 1900 RPM |
| Noise level | 0.3 sone |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Type | Fan |
| Operating temperature (T-T) | 0 - 40 °C |
| Fan diameter | 14 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 68.9 cfm |
| Airflow | 117.06 m³/h |
| Quantity per pack | 3 pc(s) |
| Fan static pressure | 2 mmH2O |
| Design | |
| Fan connector | 4-pin + 4-pin |
| Cable length | 0.48 m |
| Illumination LED | Yes |
| Number of LEDs | 12 |
| Technical details | |
| Type | Fan |
| Fan diameter | 14 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 68.9 cfm |
| Airflow | 117.06 m³/h |
| Cable length | 0.48 m |
| Fan connector | 4-pin + 4-pin |
| Illumination LED | Yes |
| Ports & interfaces | |
| Fan connector | 4-pin + 4-pin |
| Power | |
| Starting voltage | 5 V |
| Voltage | 12 V |
| LED voltage | 5 V |
| Fan voltage | 12 V |
| Fan current | 0.17 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Package depth | 144 mm |
| Package width | 91 mm |
| Package height | 147 mm |
| Width | 140 mm |
| Package weight | 758 g |
| Depth | 140 mm |
| Height | 27 mm |
| Weight | 210 g |
| Cable length | 0.48 m |
| Packaging data | |
| Package depth | 144 mm |
| Package width | 91 mm |
| Package height | 147 mm |
| Package weight | 758 g |
| Package type | Box |
| Packaging content | |
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
| Other features | |
| LED voltage | 5 V |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
