ARCTIC F9 PWM PST CO - 92 mm PWM PST Case Fan for Continuous Operation
SKU
ACFAN00215A
Login for pricing
In Stock:
0 available
92 mm, 150 - 1800 RPM, 43 CFM/ 73.1 m³/h, 1.35 mm/H²O, PWM PST, 12 V DC, 85 g, Black
- Japanese brand dual ball bearing provides a longer life span
- Ideal for continuous operation with exceptional stability
- PWM Sharing Technology (PST)
- Extremely quiet with low noise impeller
- High airflow and static pressure
Category: Computer Cooling Systems
| Suitable for | Computer case |
|---|---|
| Type | Fan |
| SKU | ACFAN00215A |
| EAN | 0840033400718 |
| Manufacturer | ARCTIC |
| Availability | Out of Stock |
| PDF URLs |
View PDF |
Perfect Case Fan Regulation with PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.
PWM Sharing Technology (PST) Lowers Noise
If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes 10 fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.
Innovative Design Enables Quiet and Efficient Ventilation
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
Extented Life Span with Japanese Dual Ball Bearing
The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice if reliability is key. The CO case fan's life span is up to 5 times longer compared to models using a generic bearing.

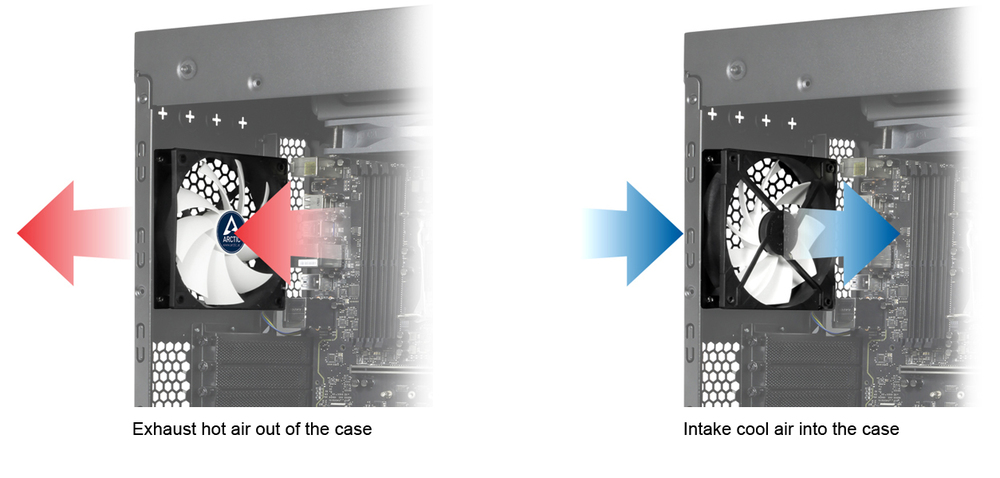

Two Way installation
- Blow warm air out of the case - Draw cool air into your case
The F9 PWM PST CO fans aim to offer superior durability and cooling performance for demanding and continuous-operating PCs. With the PWM Sharing Technology (PST), the F9 PWM PST CO fans regulate the fan speed based on the actual needs with optimal cooling performance and noise control at all times.
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin + 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 150 RPM |
| Rotational speed (max) | 1800 RPM |
| Noise level | 0.4 sone |
| Bearing type | Dual ball bearing |
| Type | Fan |
| Operating temperature (T-T) | 0 - 40 °C |
| Fan diameter | 9.2 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 43 cfm |
| Minimum air pressure | 1.35 mmH2O |
| Airflow | 73.1 m³/h |
| Number of fans | 1 fan(s) |
| Quantity per pack | 1 pc(s) |
| Design | |
| Fan connector | 4-pin + 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Cable length | 0.4 m |
| Technical details | |
| Type | Fan |
| Fan diameter | 9.2 cm |
| Supported processor sockets | Not supported |
| Compatible processor series | Not supported |
| Maximum airflow | 43 cfm |
| Minimum air pressure | 1.35 mmH2O |
| Airflow | 73.1 m³/h |
| Number of fans | 1 fan(s) |
| Cable length | 0.4 m |
| Fan connector | 4-pin + 4-pin |
| Ports & interfaces | |
| Fan connector | 4-pin + 4-pin |
| Power | |
| Starting voltage | 9 V |
| Voltage | 12 V |
| Rated current | 0.16 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Package depth | 27 mm |
| Package width | 96 mm |
| Package height | 96 mm |
| Width | 92 mm |
| Package weight | 110 g |
| Depth | 92 mm |
| Height | 25 mm |
| Weight | 85 g |
| Cable length | 0.4 m |
| Packaging data | |
| Package depth | 27 mm |
| Package width | 96 mm |
| Package height | 96 mm |
| Package weight | 110 g |
| Package type | Box |
| Packaging content | |
| Package type | Box |
| Other features | |
| Harmonized System (HS) code | 84733080 |
